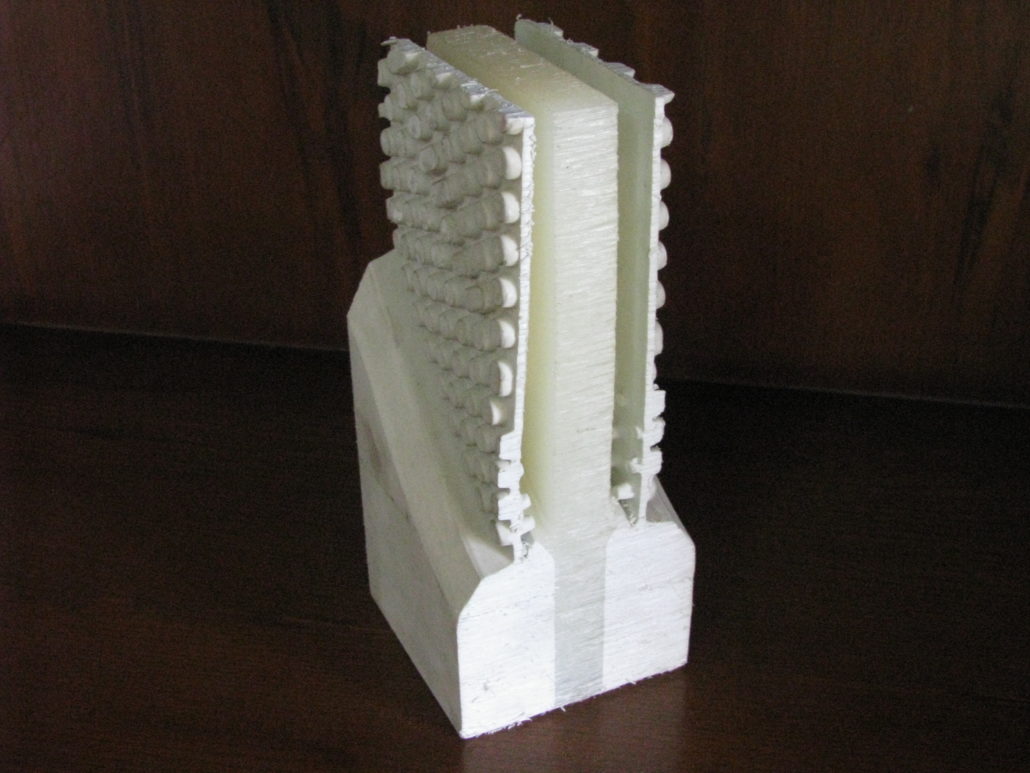

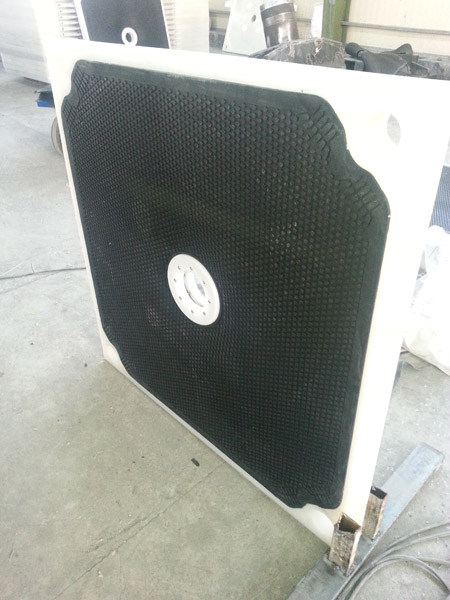

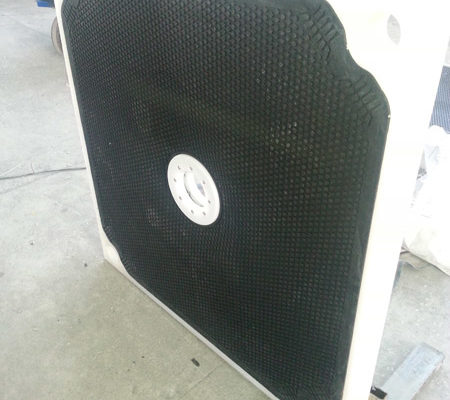

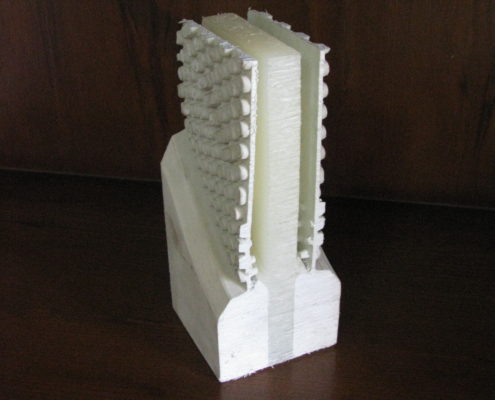

Membrane and Chamber (Recessed) plates are installed on filter presses alternately.
The operating cycle is the same as Recessed plates with the only difference in air drying cycle. There is a remarkable reduction of residual cake moisture caused by squeezing pressure to filter cake by elastic membrane.
Advantages of Membrane Plates:
1. Extremely high dry solid content in the cake up to ca.70%
2. Uniform cake without cracks
3. Meeting environmental standards
4. Automatic total discharge of cake without any damage to filter cloth
5. Higher capacity of filter press due to shorter time of filtration cycle
6. Corrosion resistant PP plates
7. Less content of filtrate cake to transport
8. Filtration area 2.5-650 m2
9. Maximum filtration pressure is up to 16 bar.

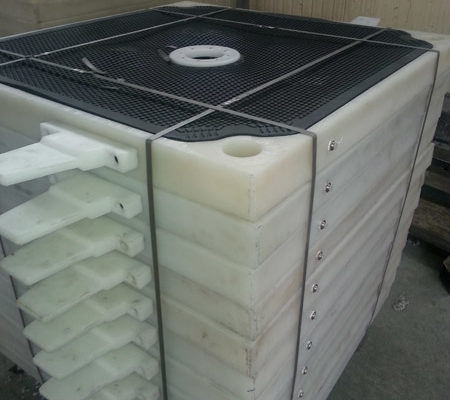

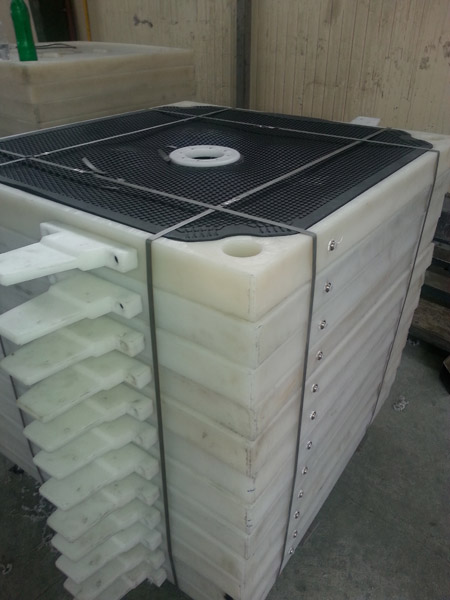

ARTA produces these plates in various sizes according to DIN 7129 from 400*400 mm to 1500*1500 mm.
(Special sizes and designs according to customers’ requirements are possible to be developed and manufactured.)
